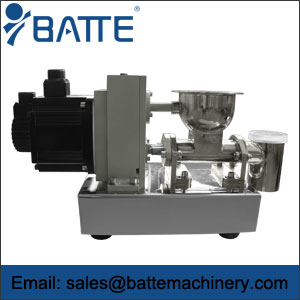

Micro gravimetric feeders
Micro gravimetric feeders can meter the materials with high accuracy. All feeding machine manufactured by Batte are continuous loss in weight feeder, which can improve the production efficiency of feeding system. Micro gravimetric feeders include micro loss in weight feeder and micro loss in weight metering feeder.

Micro gravimetric feeders


Micro gravimetric feeders Application:
Continuous loss in weight feeder is suitable for all kinds of particles, powder. Gravimetric screw feeders can guarantee the use of continuous and uniform feeding material.

Continuous loss in weight feeder Features:
Trace weight loss type feeding machine is easy to control, high degree of intelligence, screw form diversification, the screw can be according to the material to choose different types of screw, solve the bridging material. The continuous loss-in-weight feeders appearance is smooth and beautiful, with 304 stainless steel material contact parts, easy disassembly and maintenance of various components. Can at any time in feeding control precision of + 0.5%, improve production efficiency and reduce labor intensity!

Micro loss-in-weight feeder types and parameters:

Type
Screw
specification
Capacity
L/H
Driving
powerkw
Hopper
(optional)
Feeding
accuracy
BAT-LL-SS10
10
3-30
0.1
10L
±1%
BAT-LL-SS18
18
6-60
0.4
20L
±0.5%
BAT-LL-TS10
10
5-50
0.4
10L
±1%
BAT-LL-TS18
18
10-100
0.55
20L
±0.5%
Type
Screw
specification
Capacity
L/H
Driving
powerkw
BAT-LL-SS10
10
3-30
0.1
BAT-LL-SS18
18
6-60
0.4
BAT-LL-TS10
10
5-50
0.4
BAT-LL-TS18
18
10-100
0.55

Micro loss-in-weight metering feeder types and parameters:
Type
Screw specification
CapacityL/H
Driving powerkw
Hopper (optional)
Feeding accuracy
BAT-MM-SS10
10
3-30
0.1
10L
±0.5%
BAT-MM-SS18
18
6-60
0.4
20L
±0.2%
BAT-MM-TS10
10
5-50
0.4
10L
±0.5%
BAT-MM-TS18
18
10-100
0.75
20L
±0.2%
Type
Screw specification
CapacityL/H
Driving powerkw
BAT-MM-SS10
10
3-30
0.1
BAT-MM-SS18
18
6-60
0.4
BAT-MM-TS10
10
5-50
0.4
BAT-MM-TS18
18
10-100
0.75
